Name:	Standard Type All Steel 4 Feet Wide Laboratory Fume Hood
Brand:	XUECHENGLAB
Model:	XC-FH1200
Certification:	CE
Minimum Order Quantity:	3 sets
Price:	usd1150 per set
Packaging Details:	plywood case free of fumigation or carton with wrap film
Delivery Time:	7-14 days
Payment Terms:	T/T, Western Union, Paypal, Money Gram
Supply Ability:	800 sets per month

Product Catalog

Product Description

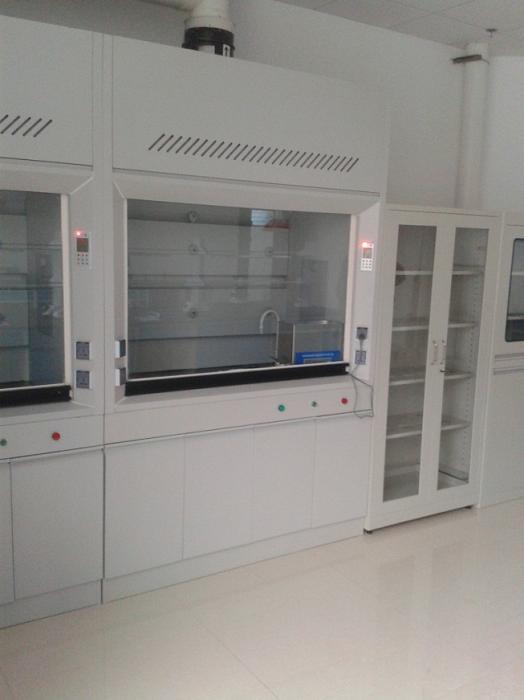

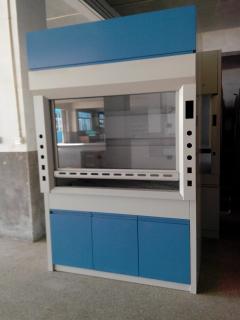

Standard Fume Hood Integrated Type Laboratory Fume Hood

Fume hood is one kind of lab furniture, essential for laboratories, which plays the role of air exhaust and gas exchange.

The structure of fume hood is upper-under type, there is exhaust hole at the top, which can be installed with vent fan.

The upper hood/cabinet has guide panel, circuit control touch switch, power sockets,etc visual window uses tempered glass, can be moved up-down. operated by people.

The under cabinet use wall/side bench type, the upper is top, the under is cabinet, the top can be installed with water sink&tap.

CE Approved Lab Fume Hood Integrated Type Lab Fuming Cupboard 4 feet wide All Steel Standard Laboratory Fume Cabinet

Features

Upper Hood: with 1.0-1.2mm thick cold rolled /galvanized steel sheet bended and pressed, the surface is treated by unoil, pickling, phosphating to prevent rust, then electrostatic spraying epoxy protective coating as surface treatment of anti-acid/alkali/corrosion, the adhesive force of its spraying epoxy protective coating is good after the test of drop impact;
- Visual window: ≥5mm thick anti-explosion tempered glass, slides smoothly, can stop at any position of the track; main window glass can slide around freely, is convenient for user to operate.
- Lining panel and Guide panel: use 5mm thick compact chemical base panel, with excellent anti-corrision effect, the guide panel is 3-level exhuast guide design inside, can remove the exhaust corners and contribute to discharge gases with different density; the control panel is set on side of outer column, is convenient for observation and operation.

- Electric System
1. Controller= LCD screen intelligent display panel.

2. Socket: use safe socket with protecting cover of dustproof, spray proof. Outer size is 60*60mm, 10A/16A 220V multifunction socket, suitable for all kinds of lab equipment.
3. Lighting: use integrative energy-saving lamp, hidden in the top panel, will not be in touch with the gases in the fume hood, is easy to be changed, the luminance is enough for experiment purpose.

Base Cabinet:

- Worktop:12.7mm thick solid core physiochemical board (epoxy resin board is optional), acid and alkali resistant, corrosion resistance.

- Cabinet body: the underneath part is overall assembly structure, use 1.01.2mm thick cold rolled / galvanized steel sheet bended, with surface sprayed by epoxy resin powder.
1. Hinge: use 90⁰ damping steel hinges, no noise, no spring back, high strength and can not easily be broken.
2. Handle: dark aluminium alloy handles or bent integrative handles(bright type stainless handle is available).

Technical Specifictaions

Name	Size	Model
Standard Type Fume Hood	12008502350mm	XC-FH1200

NOTE:

1 We can design and manufacture non-standard size as per users' requirements.
2. The price excludes vent blower, vent pipe& elbow, and water sink&tap are optional.

More Models for Option

Accessories

Benchtop Type Lab Fume Hood Table Top Type Laboratory Fume Hood

CE Approved Laboratory Fume Cabinet Fuming Cupboard All Steel Standard Design Integrated Type Lab Fume Hood

Benchtop Type Lab Fume Hood Table Top Type Laboratory Fume Hood

Packaging&Shipping

Because the GW and dimension is large, so the lab benches, fume hoods or lab cabinets can be only shipped by Sea;

They would be packed in cartons (FCL) or plywood cases(LCL, then on pallets) in assembled or disassembled state.

stainless lab furniture lab workbench stainless steel laboratory table wall bench 6000x750x850mm

Application

biological pharmacy, biological analysis, plant culture, environmental test, electronic instruments and scientific research, etc.
