Product Description

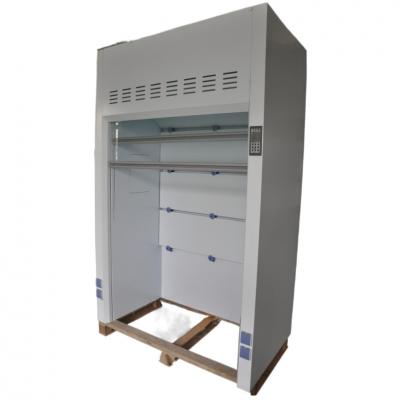

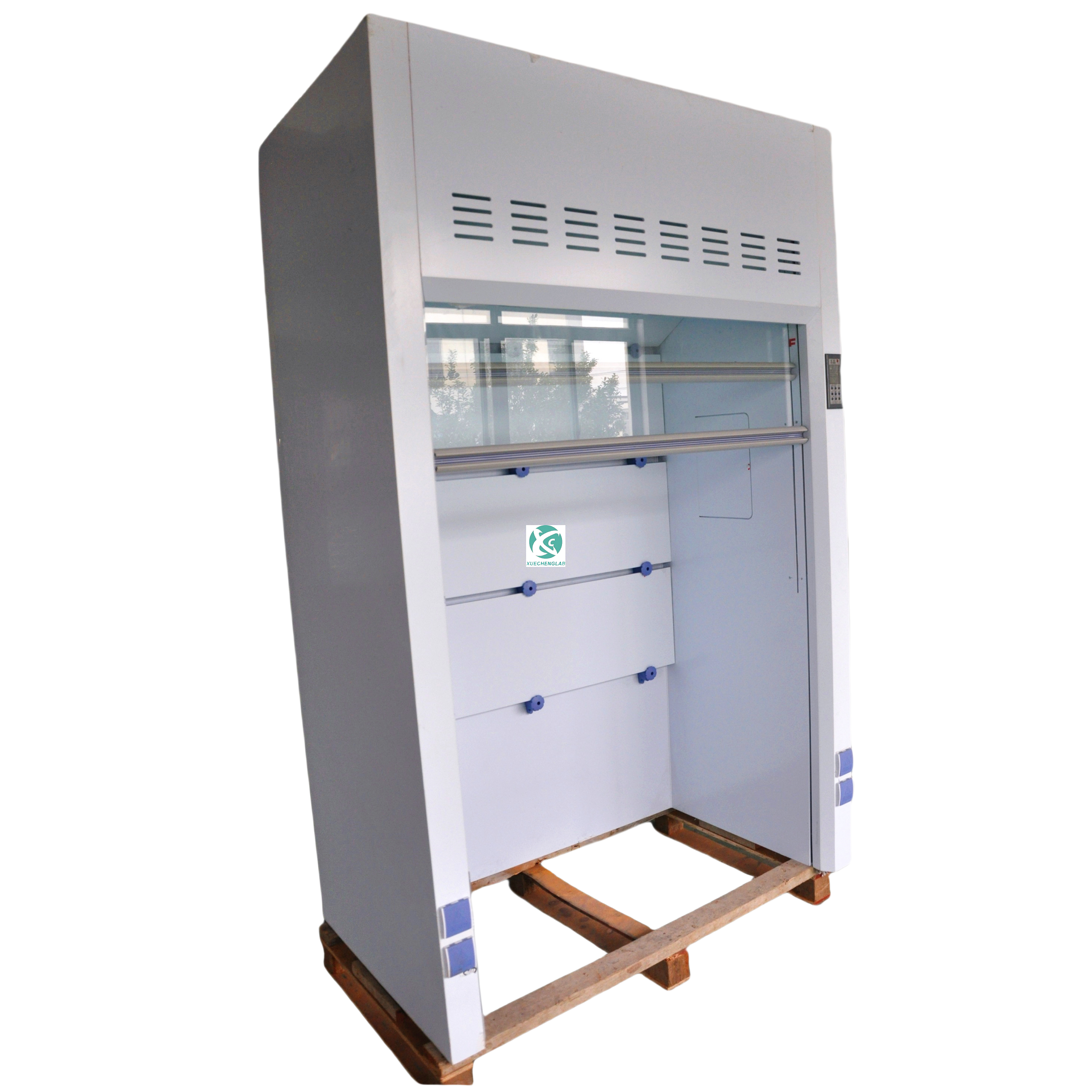

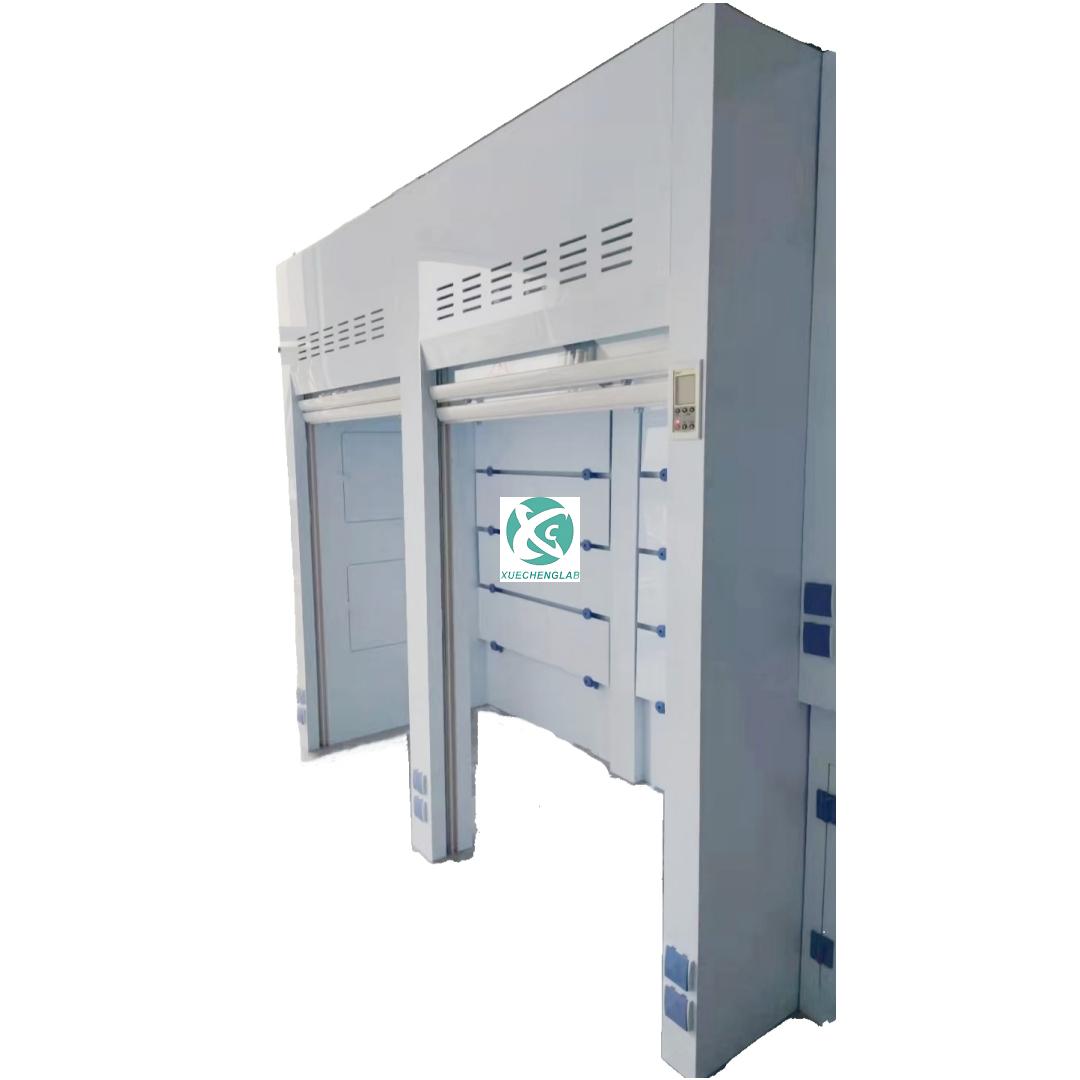

Floor Mounted PP Fume Cupboard

Walk-in Type Lab Fume Hood

Brief Introduction

PP fume hood is made of 8mm thick high quality pure material PP (polypropylene) board through integrally welded by the same color welding rod, acid alkali resistance and weather resistance is very good.

The floor type fume hood adopts top-hood type air exhaust design, guide baffles use the same PP material to make, with perfect corrosive resistance

Features

It adopts double-layer structure design.
The outer layer and the inner layer are made of 8mm thick high quality pure polypropylene panel, after caved bent treatment into whole cabinet, with strong acid and alkali resistance, corrosion resistance.

- Liner:
The inner side baffles have 2 maintanence windows, can be set with water cock or gas cock, the back baffle can be fixed with guide baffle, the top baffle can be set with lighting and gas collecting device.
1- guide baffle: use bran-new 8.0mm thick welded PP board to make, with strong acid alkali resistance, corrosion resistance,
installed in the back and top of the work space, consists of at least 3 baffles, a gas chamber is formed between the connection between the working space and the exhaust pipe to discharge the polluted gases evenly.
the installation size is scientific and reasonable, without airflow dead corner, can get max exhaust gas capture performance.
2-fixture clip: use acid alkali resistant PP material, good anti-corrosion performance, generally azure blue color.
used to combie the guide baffle and the hood body, can be disassembled repeatedly.

- Sash System: (Sliding Door/Visibe Window)
the suspension device use sync structure

1. sync belt: the synchronous belt drive displacement is accurate,small force on the shaft, compact structure, oil resistance, good wear resistance and good anti-aging performance.
2. sync pulley: polypropylene pulley, mute.
3. Visual window:

The movable vertical window sliding door is placed between the working space and the operator to protect the operator's safety, combined with the balance position, the visual window sliding door can stopat any active point;
The field of view can be completely clear and unobstructed.

 Use 5mm thick tempered glass, high strength, good bending resistance, and will not produce small fragments with acute angles when broken.
3)frame: use frameless door, embeddedly combined with the glass' four edges clamped, and has low frictional resistance to ensure the safety and durability of the visual window.

- Electrical System

The LCD control panel is set with buttons for power supply, socket, lighting, fan and operating indicator light, etc.
The LCD screen can display the operating condition clearly.

can be matched with international standards of sockets in addition as per customer's actual requirements, like American standard, British standard, European standard, Austrialian standard, etc
