Name:Centrifugal Blower PE Exhaust Fan for Laboratory Ventilation Use
Brand:XUECHENGLAB
Model:XC-FD315A2
Lead Time:10-20 days
MOQ:2 sets
Price:USD450
Payment Methods:T/T, Western Union, MoneyGram, Cash

Product Catalog

Product Description

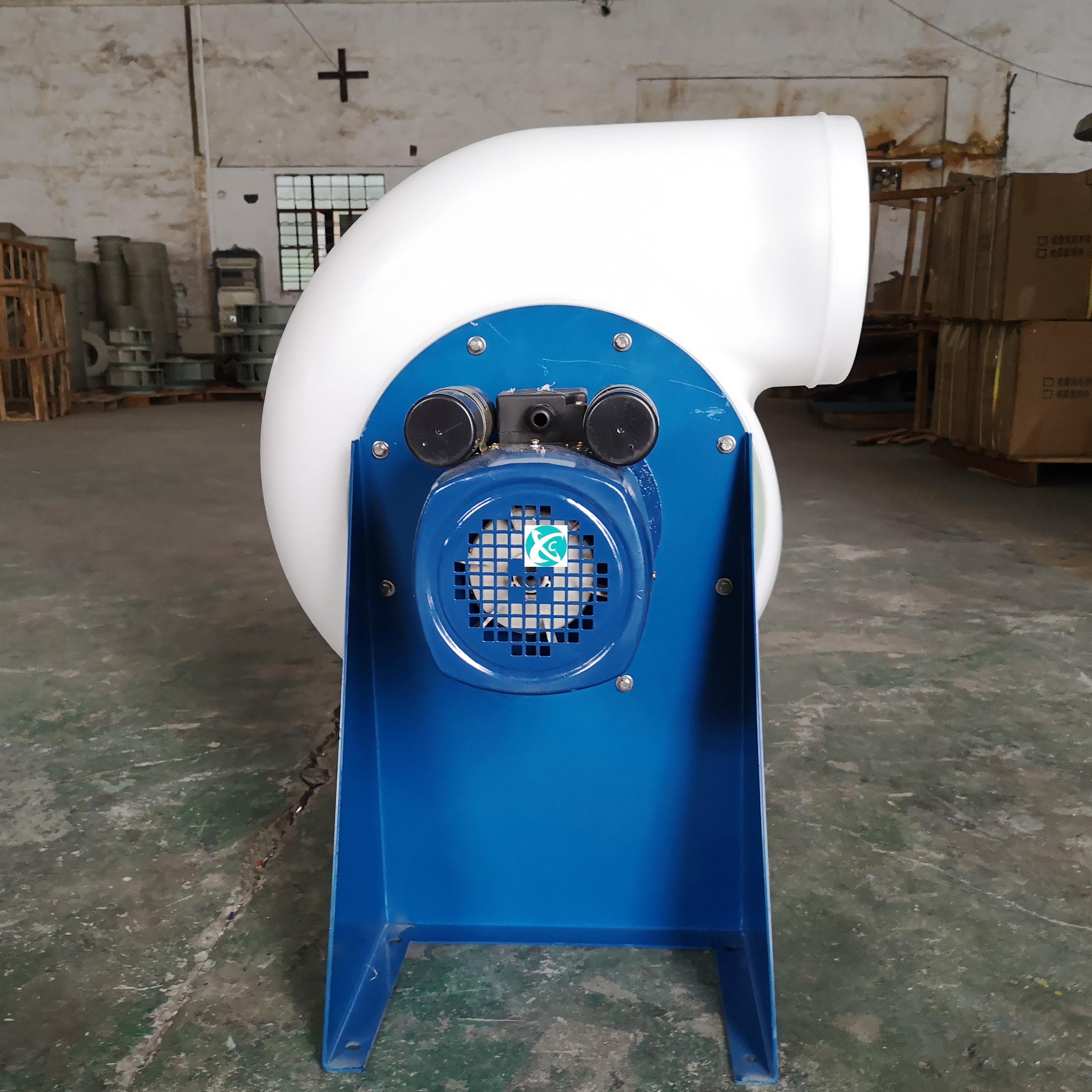

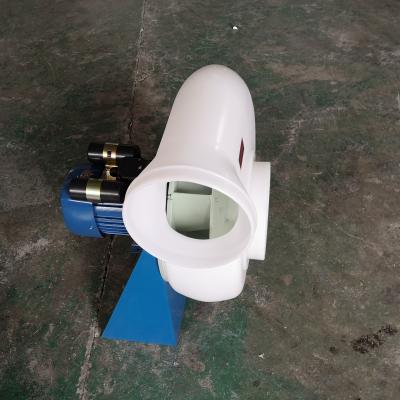

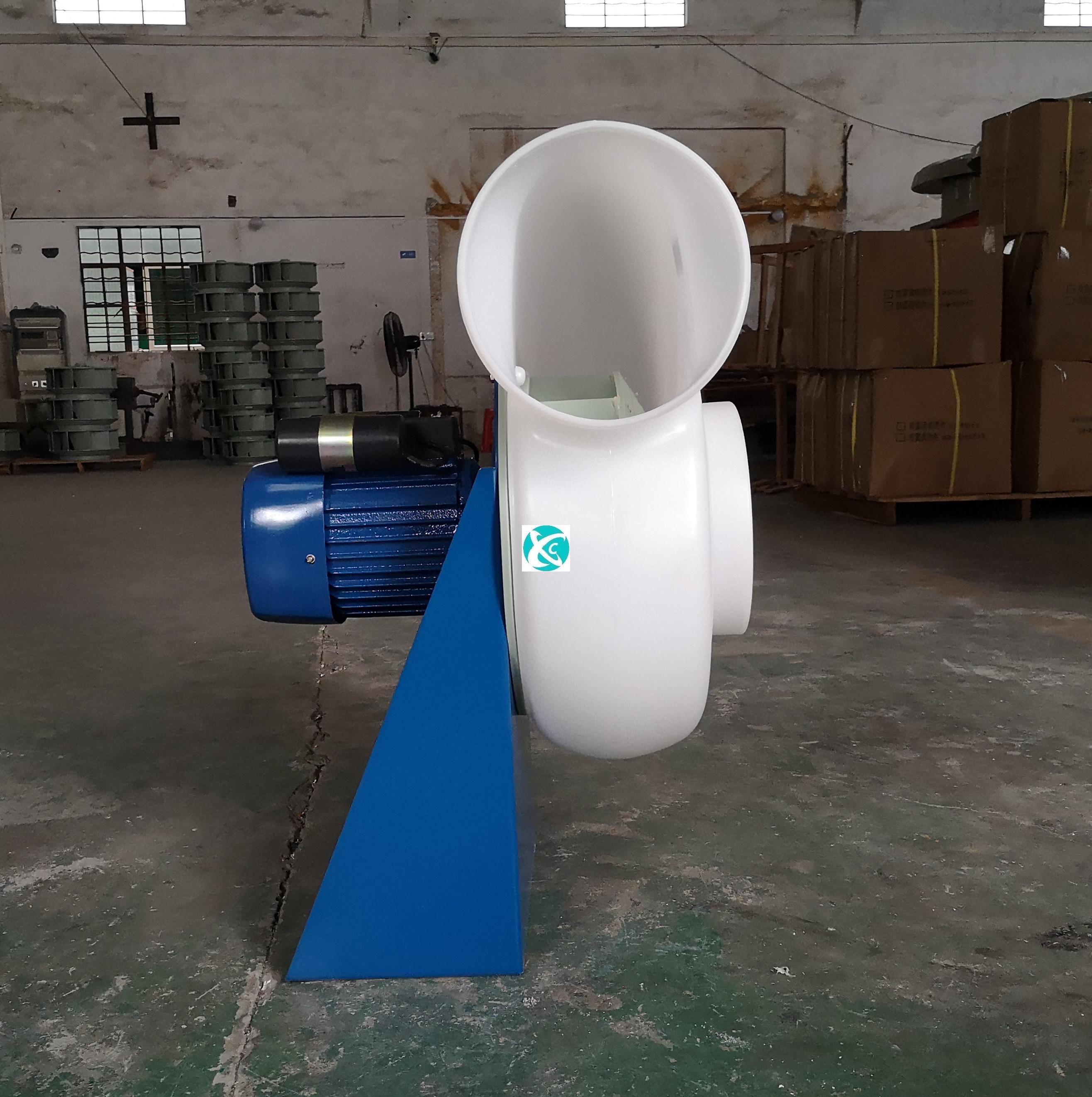

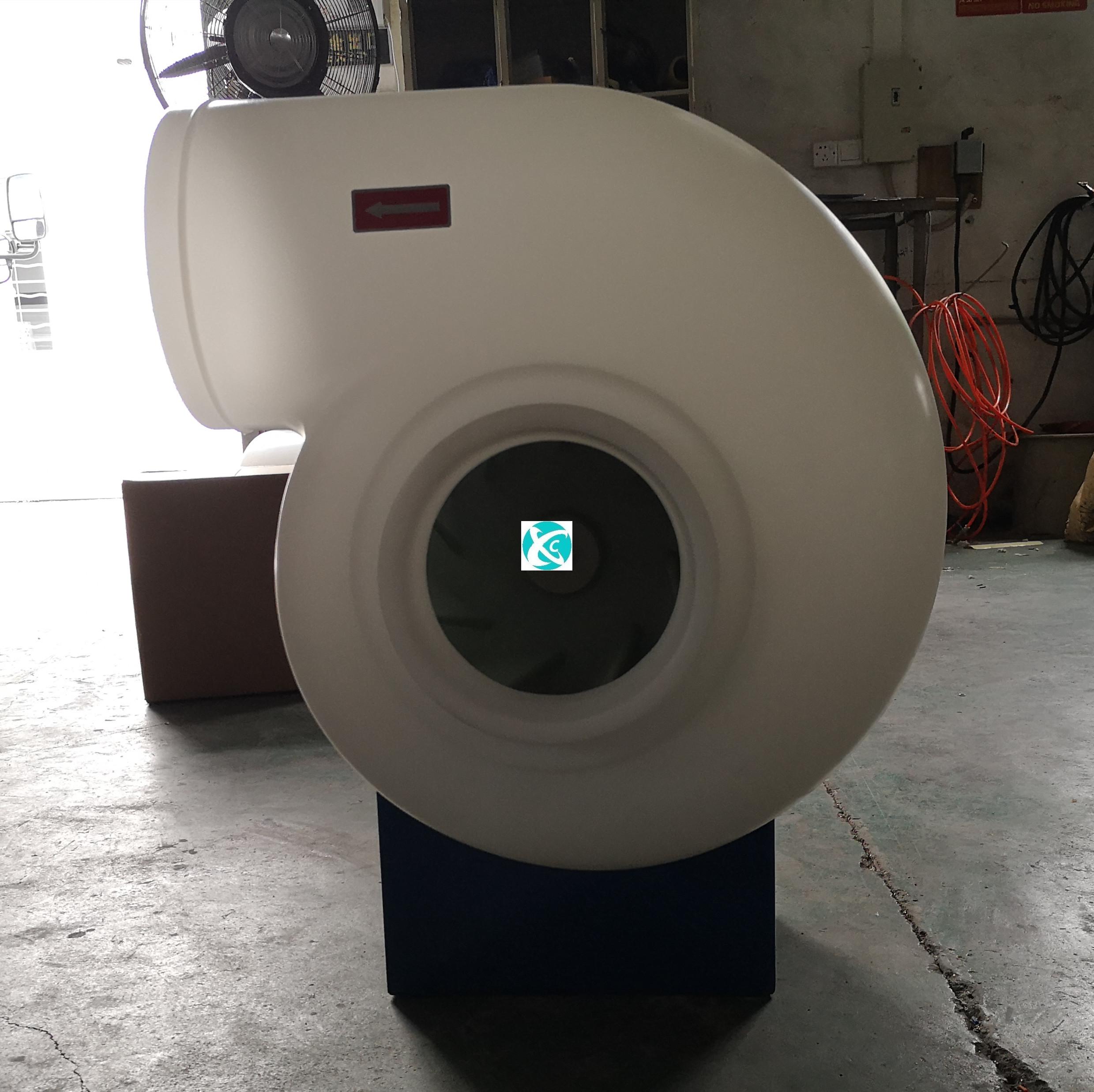

PE Lab Centrifugal Blower

Features

  • The case is made of polyethylene (PE) and the impeller is made of glass fiber reinforced polypropylene.
  • Motor stand made of stainless steel or steel or epoxy resin, all screws made of stainless steel.
  • The impeller uses the backward impeller, the air volume is big while the noise is low, but no overload.

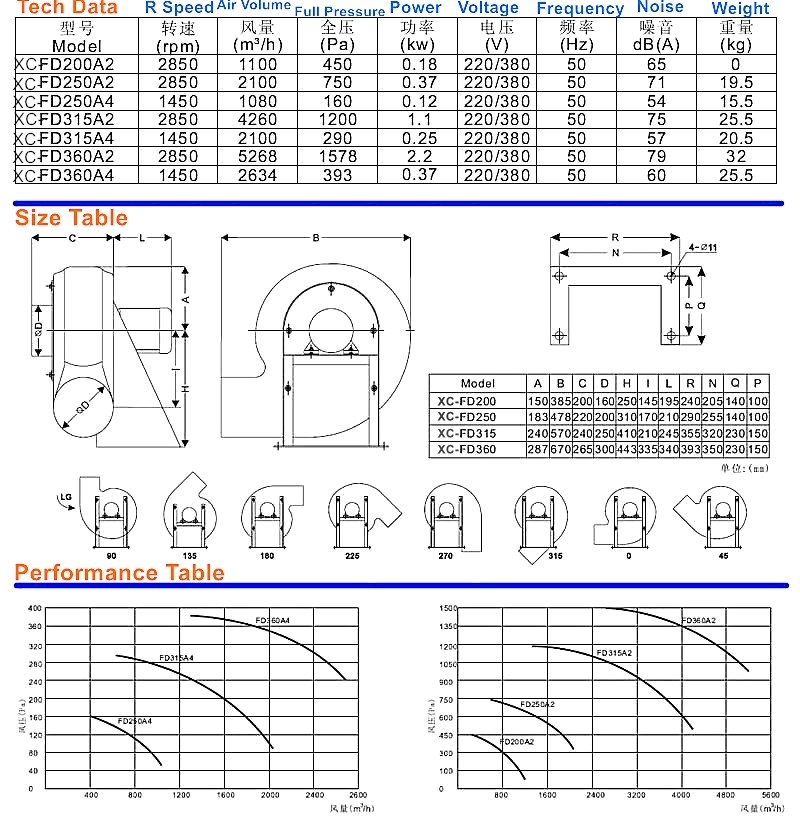

Technical Drawings



Technical Specifications

Model

Motor Speed

(rpm)

Air Volume

(m3/h)

Static Pressure

(Pa)

Power

(kw)

Voltage

(v)

Frequency

(Hz)

Noise

(dB)

Weight

(kg)
XC-FD200A2 2850 1100

450

 0.18 220/380 50 65 14
XC-FD250A2 2850 2100 750 0.37 220/380 50 71

19.5
XC-FD250A4

1450

 1080 160 0.12 220/380 50 54 15.5
XC-FD315A2 2850 4260

1200

 1.1 220/380 50 75 25.5
XC-FD315A4 1450 2100

290

 0.25 220/380 50 57 20.5
XC-FD360A2 2850

5268

 1578 2.2 220/380 50 79 32
XC-FD360A4 1450 2634 393 0.37 220/380 50 60 25.5


Application

Suitable for exhausting factory chemical gas and laboratory gas.
