Product Description

Science Biology Laboratory Table Lab Bench

Teacher(Demo)Bench 2400*700*850mm

Worktop: integrated top, use famous brand 12.7mm thick double-sided physicochemical membrane board, with advantages like warpage resistance, easy to clean, waterproof, fireproof, acid and alkali resistant, corrosion resistant, anti-static, double sides can be flipped to use.

Cabinet Body: Alum- alloy Frame Structure+ Melamine Board

the main body backboard and hanging board use 16mm thick melamine dampproof double veneer board, all exposed panel edges shall be sealed with high quality PVC by automatic edge sealing machine, strong adhesion, good sealing, no deformation, beautiful appearance, durable, never degumming.

the alum- alloyframe use GB Ф50 mm±1.0mm round tube as standing legs, the horizontal tube is square tube 32x28±1.0mm, the wall thickness for the alum-alloy profile is not less than 1.0mm(±0.2mm), electrostatic spraying on aluminum alloy surface, the connecting joints are ABS engineering plastics made.

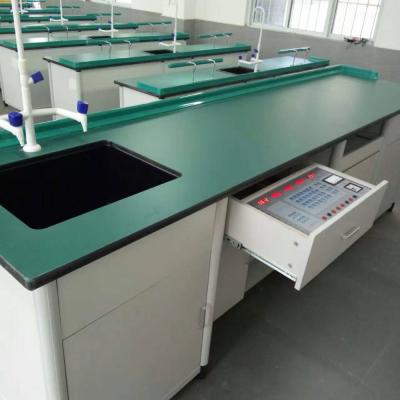

Structure: demo bench is modular design, the teacher demo power supply and students’ power suplly control device can be put in the middle part, the computer host, DVD, amplifier, center control host can be put within left side of the bench.

Foot Pad: use special mould ABS injection molding foot pads, with adjustable height, can effectively prevent bench body from damp, extending the equipment lifetime.

Technical Specifications

Teacher General Power Supply

• leakage protection switch, work indicator light use China made high quality products, 220v AC output sockets (2,3-hole socket) use China made high quality products.

• low voltage AC power supply: 2-30V can be adjustable(2v per gear), rated current 8A(automatic protection for short circuit and overload, automatic reset)

• DC stabilized voltage source: 1.5-1.8V continuous adjustable, rated current 6A, 18v-24v rated current 3A(automatic protection for short circuit and overload, automatic reset), 85 pointer gauge display.

• DC big current output: 9V/40A, 8s automatically disconnect.

• Teacher socket power supply: 220v AC, load current 10A. 5-hole(or 3-hole dual purpose)AC power supply socket 1 pc. is built within the middle drawer of the demo bench.

A. Student bench AC 220v power supply is controlled by teacher, each group is controlled by air switch, 4 groups in total, and matched with leakage protection switch.
B. Teacher control uniformly student bench low voltage power supply, AC each gear 2v, 15 gears in total. The DC is fine tuning under control.

Teacher Chair

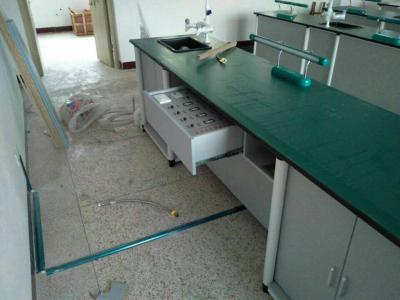

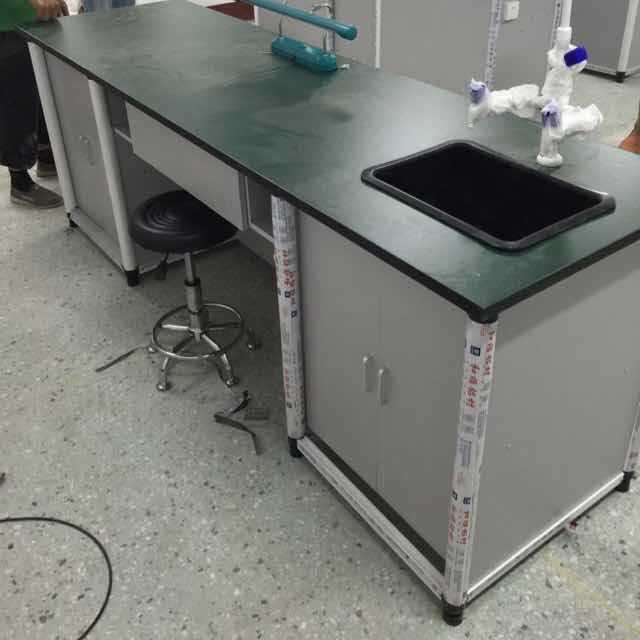

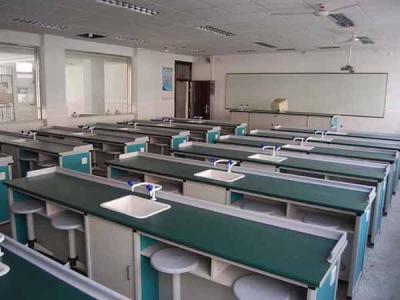

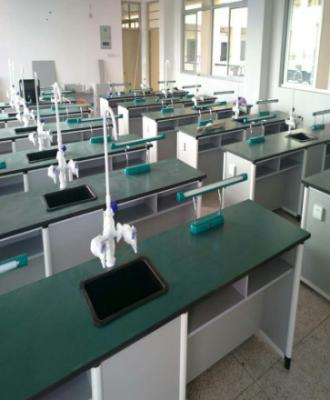

Student Bench

Worktop: integrated top, 12.7mm dark green solid physicochemical board. with advantages like warpage resistance, easy to clean, waterproof, fireproof, acid and alkali resistant, corrosion resistant, anti-static, wear resistance, pollution resistance, its cross section is sealed with hard PVC by imported edge sealing machine in condition of high temperature& hot pressing.

Cabinet body: alum-alloy fame + Melamine Board

the main body backboard and hanging board use 16mm thick melamine dampproof double veneer board, all exposed panel edges shall be sealed with high quality PVC by automatic edge sealing machine, strong adhesion, good sealing, no deformation, beautiful appearance, durable, never degumming.

the alum-alloy rame use epoxy resin electrostatic spraying on aluminum alloy surface.

Connecting Joints: ABS special connection joints, assembly seam is tight, firm and no loose, no deformation, beautiful and durable.

Foot Pad: use special mould ABS injection molding foot pads, with adjustable height, can effectively prevent bench body from damp, extending the equipment lifetime.

Specifications

Other Accessories

1)  biology desk lamp

2) Power Supply

3)  Water Sink&Faucet

4) Desk Eye Washer

Student Stool

Packaging &Shipping

They would be packed in cartons (FCL) or plywood cases(LCL, then on pallets) in assembled or disassembled state.

Of course smaple for table or stool can be shipped by Air or Expresss(dhl, fedex, ems, ups, tnt,etc) if you can accept the shippig cost!

Company Profile
Xuecheng Global Trader Co., Ltd is one professional and reliable industry and trade company, located in Chinese beautiful Olympic Sailing City- Qingdao,
after years’ development, we have grown into one diversified company, engaged in all kinds of lab furniture, lab water purification system, lab equipment, medical equipment, etc
