Product Description

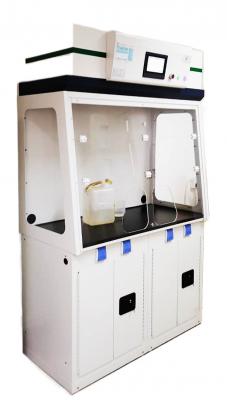

Ductless Filtering Fume Cabinet for Chemicals

Ductless fume hoods are fume cabinet that does not require any external ventilation. Instead, they use filters to capture solvent fumes from circulating air, which is then vented into the room. Ductless fume cabinets can maintain the same air flow as a standard vented fume hood, but are easier to install since they do not require ventilation ducts. Sensors inside the ductless fume cabinet monitor gases, and an alarm sounds if the filter becomes overwhelmed and fumes escape. A ductless fume hood is best used for applications that require small volumes of solvents, since the filters can become saturated quickly with large volumes. Therefore, reagents should never be stored inside a ductless fume hood. When used as directed by the manufacturer, a ductless fume cabinet can be a welcome addition to a laboratory, especially when space is at a premium and a full vented fume hood will not fit.

XC- D series ductless filtered fume hood is compliance with NFX15 211:2009(ANSI Z 9.5-201), ASHRAE 110:1995 standard and China national standard JG/T385:2012, certificated by ISO9001.

Features

Excellent

 no need to install pipeline engineering, convenient installation, no exhaust gas, new environmental protection.

Fan

DCBL fan, super quiet, no spark static, stable performance, long service life.

Intelligent monitoring and alarm system

dual-probe design can digitally monitor and alarm the temperature, humidity and VOC concentration in real time.

High-efficiency filtration system

flexible filtration module, which can be matched with pre-filter powder filter, high-efficiency molecular filter and HEPA powder filter to meet various experiments’ requirements and achieve the best adsorption effect.

IoT remote monitoring system

intelligent HMI man-machine interface, SIM card 4G communication, Intelligently view the equipment operation, and the operation data can be set to realize monitoring and alarming.

Ergonomics

the ergonomic sloping front door panel design provides the best look and feel and is comfortable to operate.

7-inch large screen display

resolution 1024x600, perfect visual effect, manage the chemicals in operation.

Technical Parameters
