Product Description

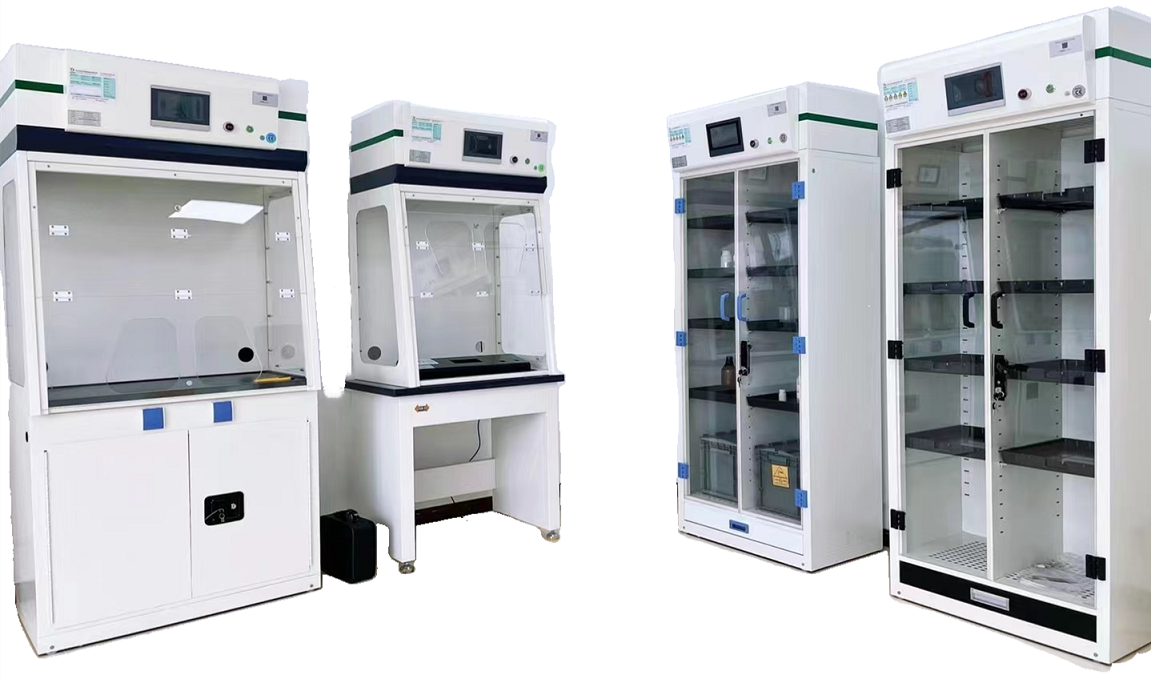

Balance Enclosure Filtered Ductless Fume Hoods

Ductless fume hoods pass contaminated air through filters before returning air to the room. Use for locations where outside ventilation cannot be achieved. A ductless fume hood can eliminate very high percentages of particulates and biological hazards to protect lab workers and the lab environment. When deciding if you need a ductless fume hood, take into consideration physical installation requirements and the materials or chemicals you are using.

XC- D series ductless filtered fume hood is compliance with NFX15 211:2009(ANSI Z 9.5-201), ASHRAE 110:1995 standard and China national standard JG/T385:2012, certificated by ISO9001.

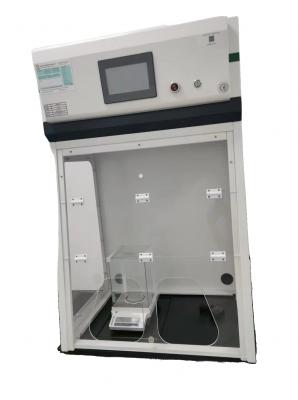

Specially designed for safe weighing of toxic chemical powders and reagents.It adopts negative pressure airflow to ensure good control of concentration, filtration effect, and accurate weighing and balance stability, can meet the weighing precision of one in 100,000, to ensure the safety of laboratory operators.

The balance weighing hood has the same configuration with the fume hood, without the countertop and cart, which needs to be equipped with a dedicated balance table (specifically for weighing), shock absorption.

Working Principles

1. Air inlet

Air can be pumped directly from the laboratory into the fume hood, creating negative pressure, and the steady face velocity forms a natural barrier to isolate users and the chemicals they operate with.

2. Comprehensive filtration system

The fan system will suck the toxic and harmful gases upwards, and return clean air to the room after filtration. The excellent control concentration of the cabinet can ensure that the chemical gas in the cabinet will not return to the room and cause pollution.

3. Purify the laboratory air

Different filters are configured according to different operations to effectively filter toxic and harmful gases, purify the laboratory air, remove chemical residue odor, and  the level of laboratory cleanliness.

4. Purify the surrounding air

The continuous filtration efficiency of the fume hood can help to purify the indoor air.

Features

Excellent

 no need to install pipeline engineering, convenient installation, no exhaust gas, new environmental protection.

Fan

DCBL fan, super quiet, no spark static, stable performance, long service life.

Intelligent monitoring and alarm system

dual-probe design can digitally monitor and alarm the temperature, humidity and VOC concentration in real time.

High-efficiency filtration system

flexible filtration module, which can be matched with pre-filter powder filter, high-efficiency molecular filter and HEPA powder filter to meet various experiments’ requirements and achieve the best adsorption effect.

IoT remote monitoring system

intelligent HMI man-machine interface, SIM card 4G communication, Intelligently view the equipment operation, and the operation data can be set to realize monitoring and alarming.

Ergonomics

the ergonomic sloping front door panel design provides the best look and feel and is comfortable to operate.

7-inch large screen display

resolution 1024x600, perfect visual effect, manage the chemicals in operation.

Technical Parameters

Application

solid powder and liquid weighing.
